6-Rail Flat-Mount Vroom Rack™ for Conex (94" Rails)

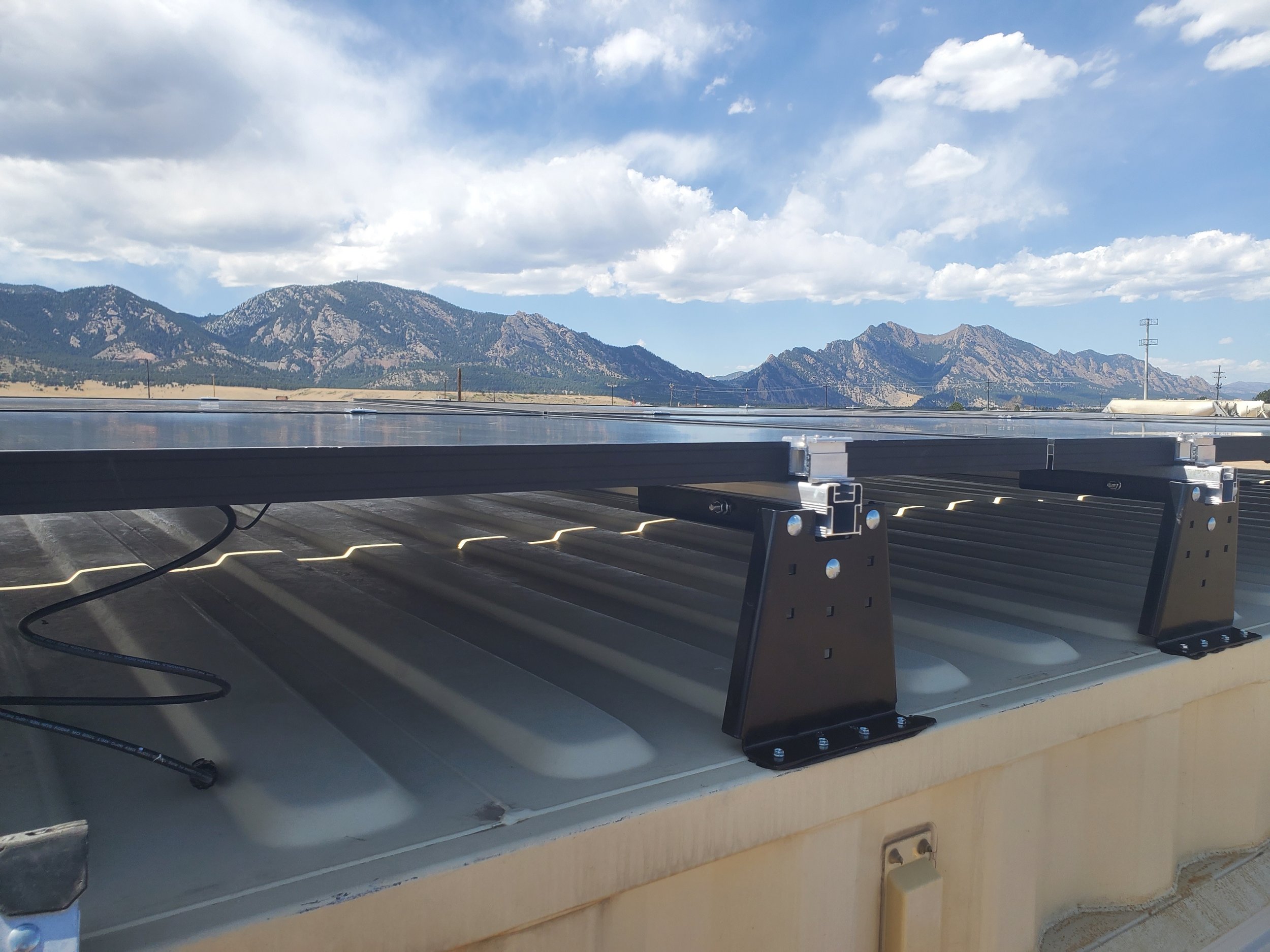

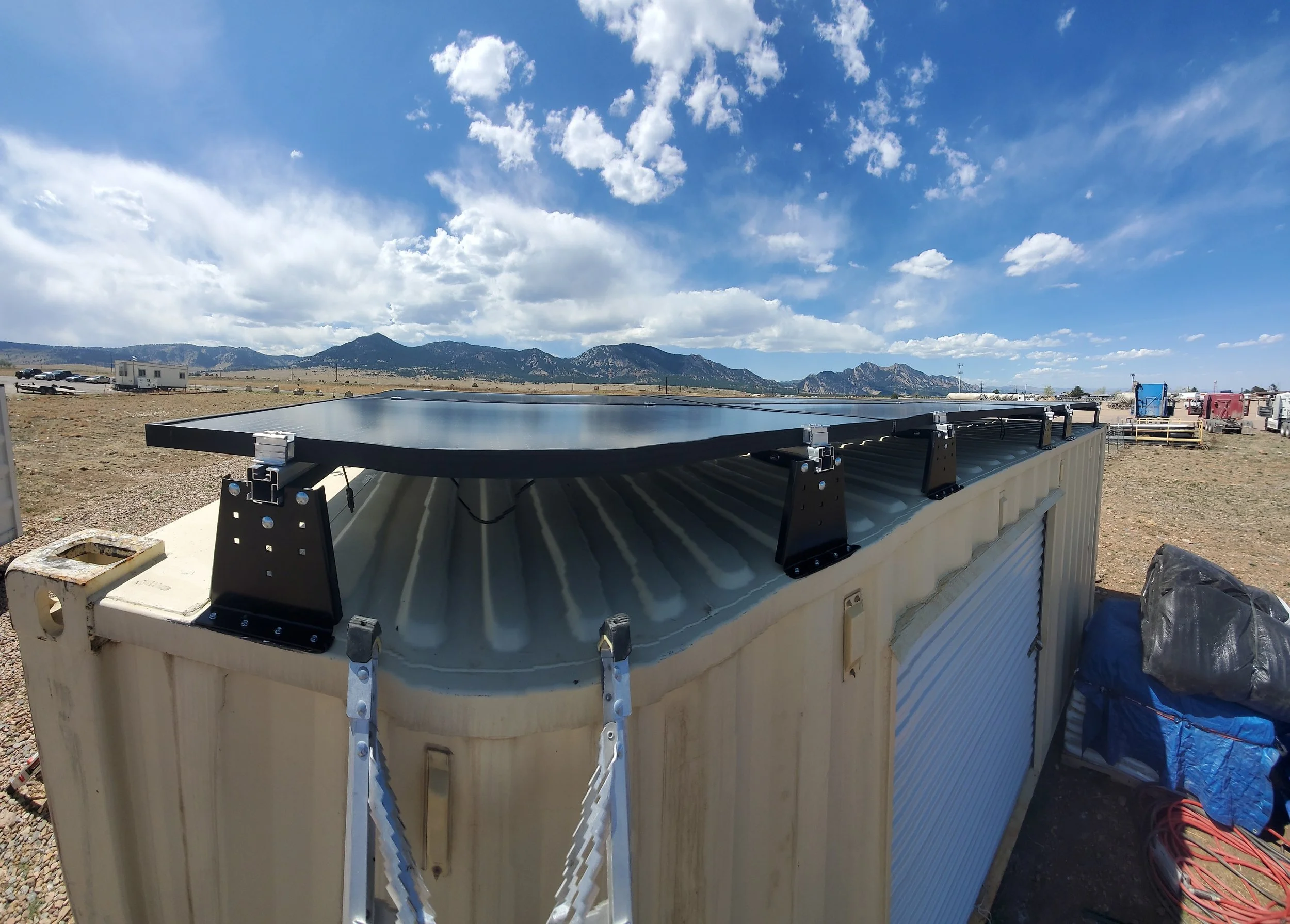

Model #FLTRACK6R-CNX - A flat-mount, adjustable shipping container rack designed, USA-built, and tested specifically for easy top mounting on a conex shipping container... with no middle roof-penetration required. Built for commercial-grade solar modules and adaptable to panels up to 45” wide.

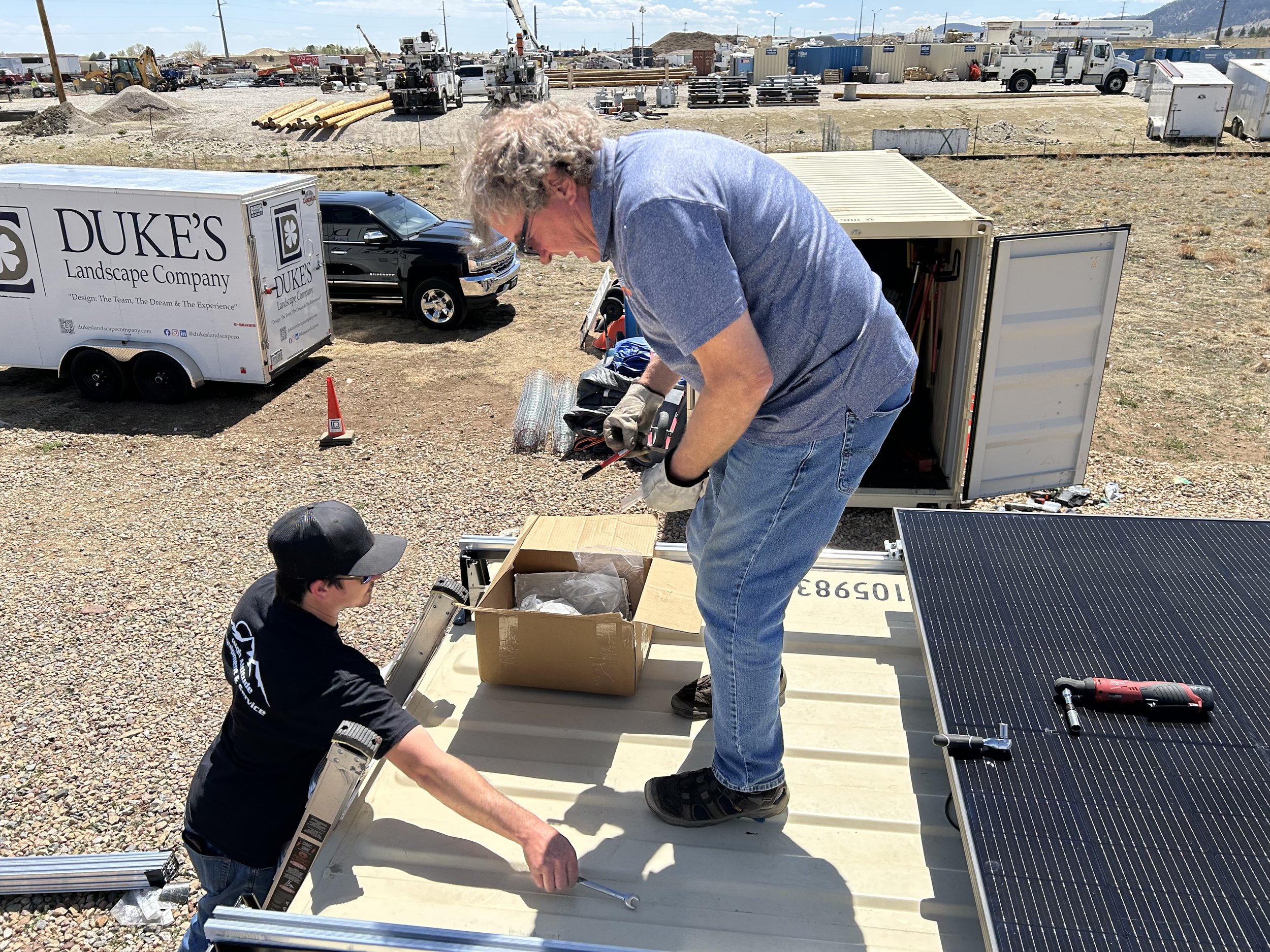

Easier, Faster Installation – Our adaptable, adjustable racking solution is designed to install easily into the top of the side support frames of most existing shipping containers in under two hours; so no middle-roof penetration required. And, less up-and-down the ladder action during install!

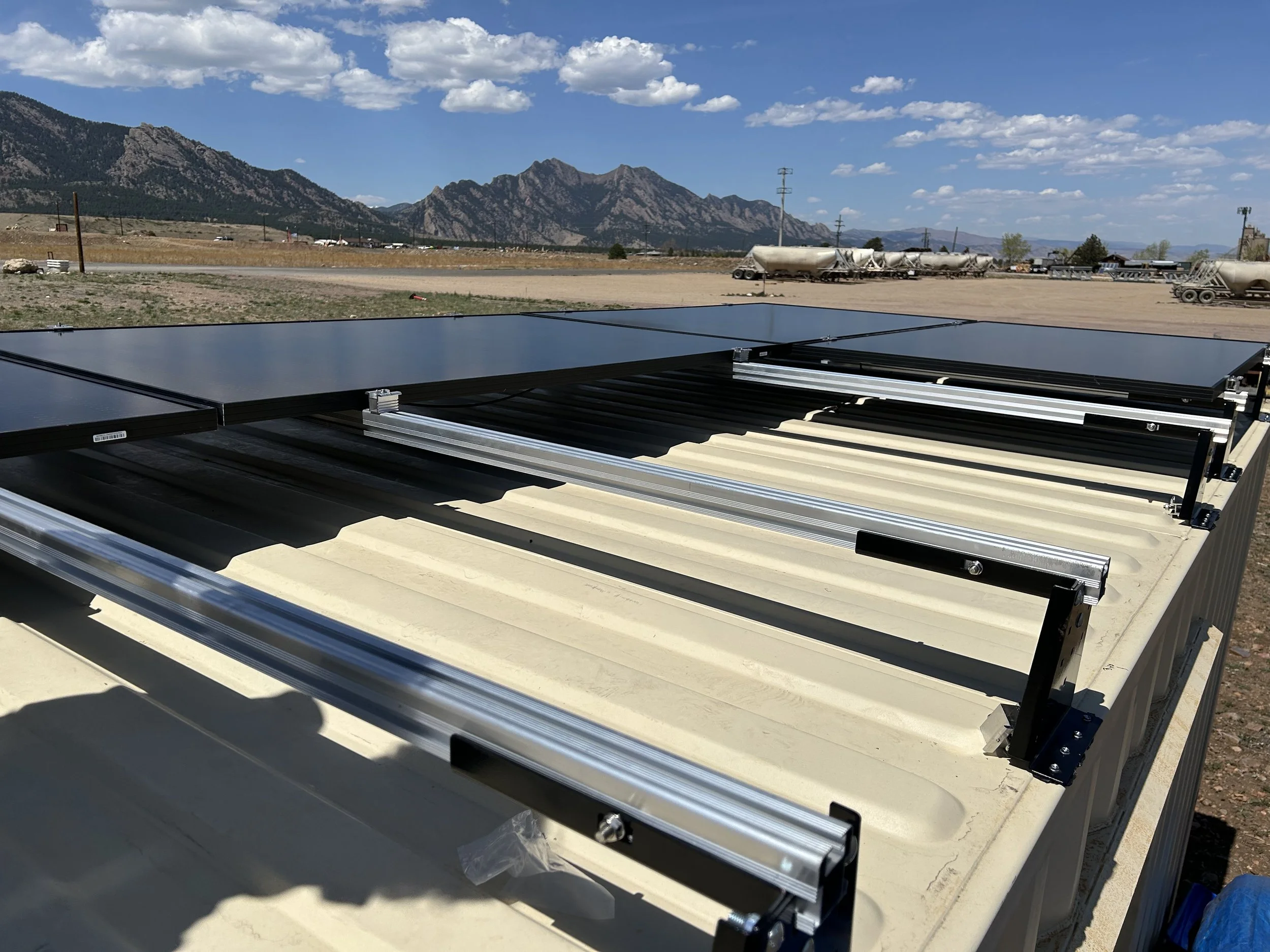

Designed for Solar Panel Mounting on the conex roof – Our patent-pending rack design has a unique mounting foot and is stronger than other rack options because of its mounting foot design and heavy-duty construction. This means that most solar modules can be easily supported with (2) rails. This 2-rail functionality enables a single 6-Rail Flat-Mount conex rack to accommodate the solar modules across an entire 20-ft shipping container.

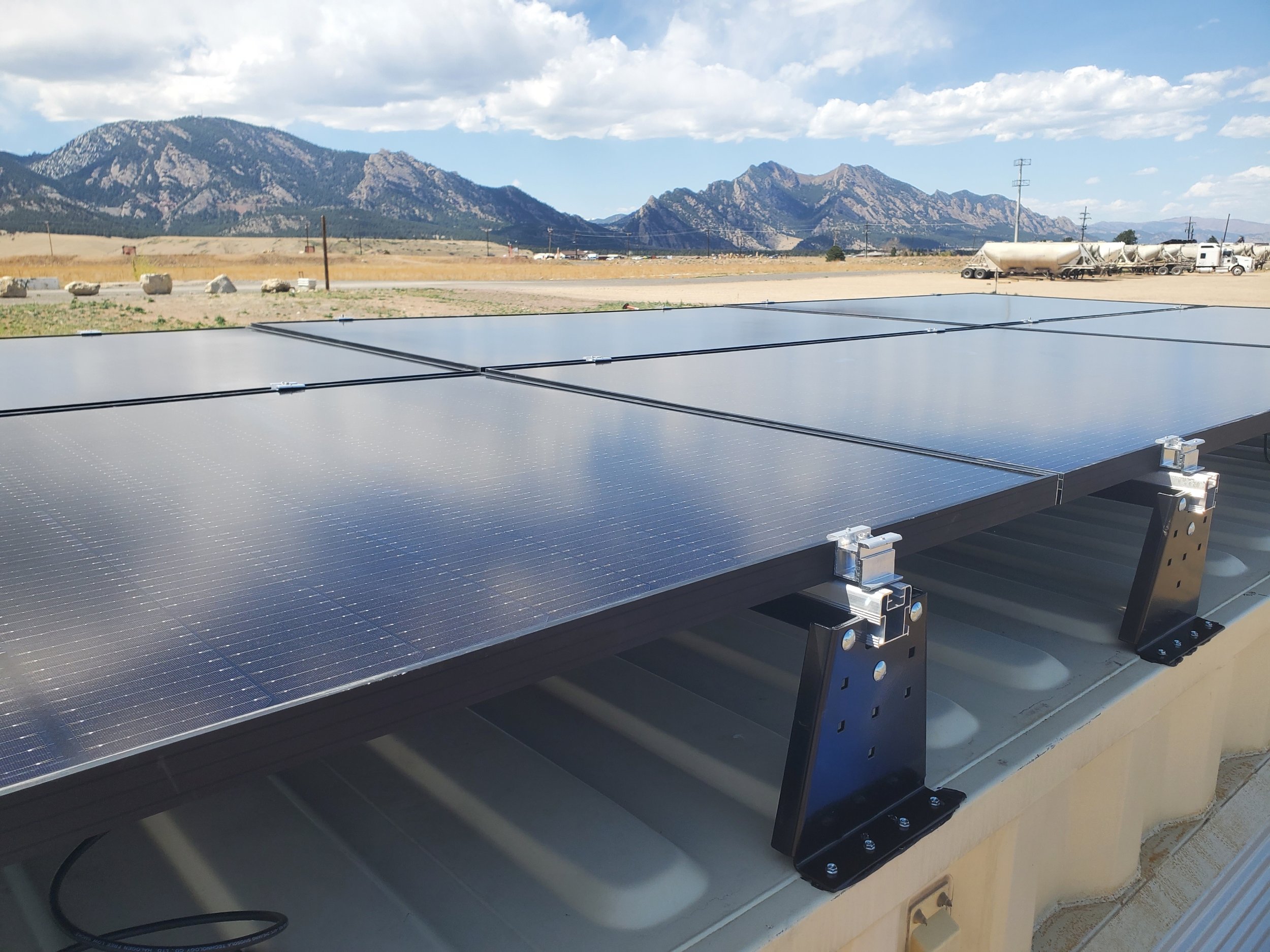

Adjustable Height and Width – Fits shipping container widths from 84” to 102”; (3) mounting height options available, so solar modules can be mounted 2-5” above the conex roof to mitigate heat build-up and facilitate maximum solar energy capture from bi-facial solar panels.

UL 2703 Grounding Certification – Rack is UL 2703 compliant pending full UL certification; grounding & bonding requirements are included in this certification.

Testing - The 6-Rail Flat-Mount Vroom Rack™ for Conex has been field-tested and approved for durability under normal operating conditions consistent with proper installation as described in the Owner’s Manual.

What’s in the box?

All Vroom Power Racks™ include a 24-month parts and product warranty.

6-Rail Flat-Mount Vroom Rack™ for Conex (94" Rails)

Model #FLTRACK6R-CNX | SKU - 000141

A 6-Rail solar panel rack for conex shipping containers.  A heavy-duty, adjustable option that not only looks good, but is also heavy-duty and easy to install.  An adjustable shipping container rack designed and built in the USA, and tested specifically for raised solar panel mounting on a conex... with no center-roof penetration required.

Box 1 of 2 - Rails | 50 lbs. | Box Dimensions: 6” x 4” x 96”

·       Vroom Power conex Rack™ with (2) 3-rail racks (6 total rails, 94” each) built for commercial-grade solar modules and featuring up to 90” of available solar panel space on the rails.  Adaptable to panels up to 45” wide, and 30-40mm thickness. Fits conex widths from 84” to 102” (mounts up to (4) total solar modules on (6) rails depending on panel width).

·       Vroom Rack™ rail parts are made of 3003 or equivalent aluminum; not powder-coated.

·       Solar Panels and Connecting Cables are NOT INCLUDED.

·       SKU | 000142

Box 2 of 2 - Hardware | 20 lbs. | Box Dimensions: 12” x 12” x 6”

·       Complete rack mounting hardware, enough to mount up to (4) total solar modules ((4) sealed hardware bags)

·       (18) mid-clamps and (12) end-clamp height-adjustment legs (Advanced Clamp Leg)

·       (12) L-Foot Mounting Triangles | (12) Channel Brackets

·       (12) ¼” spacers

·       5/16” Carriage bolts, Star Washers, and NyLock Nuts – Qty. (36) each, (3) bags

·       (24) 20mm SHORT T-Bolts w/rectangular head and Serrated Flange nut, (3) bags of (8) each

·       (40) ¼” x 1 ½” hex-head self-tapping screws, (4) bags of (10) | Butyl Sealing Tape

·       Hardware package includes card w/QR Code for Owner’s Manual/Installation video

·       Vroom Rack™ mounting parts are made of powder-coated 3003 or equivalent aluminum; not powder-coated.

·       SKU | 000143
