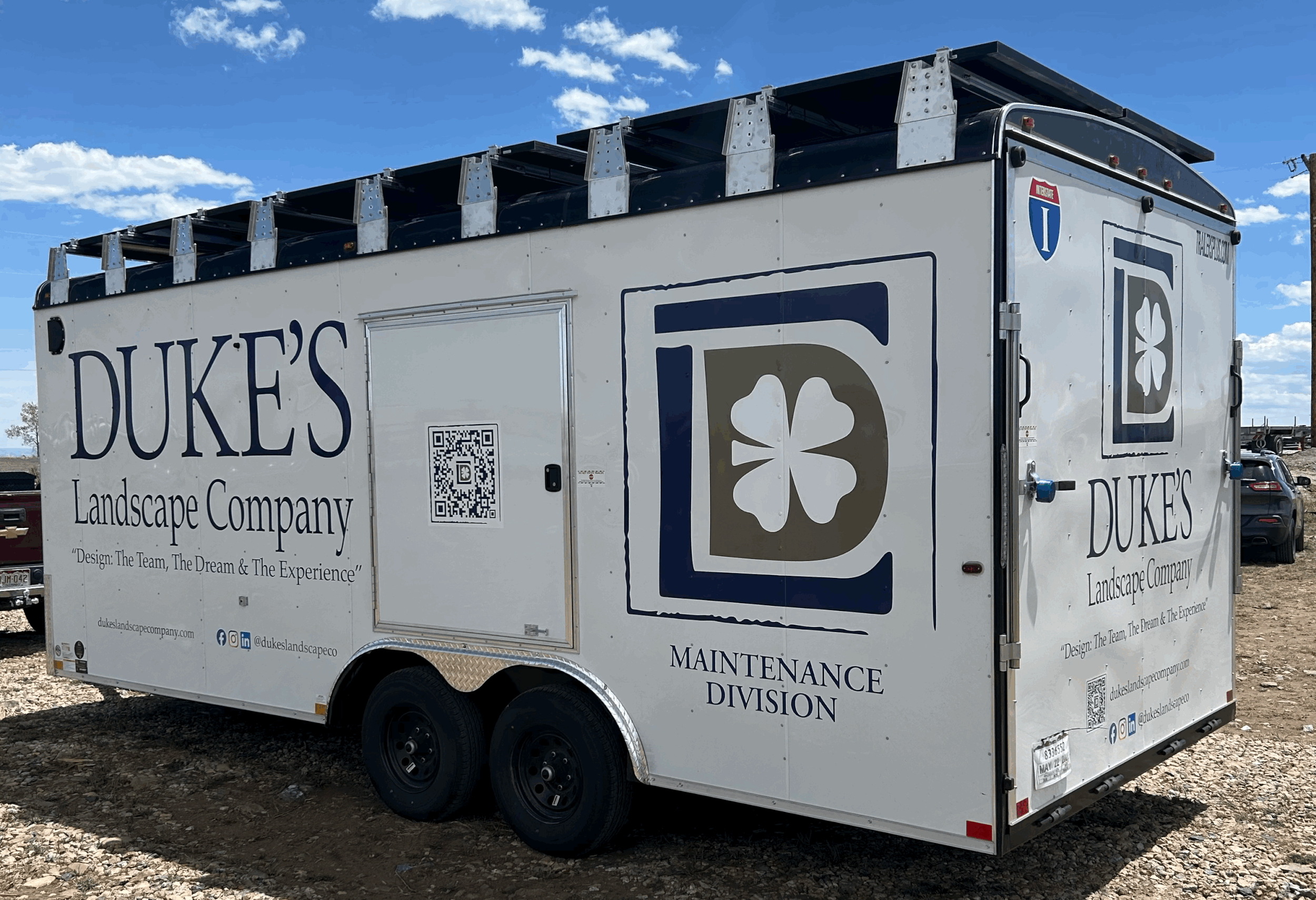

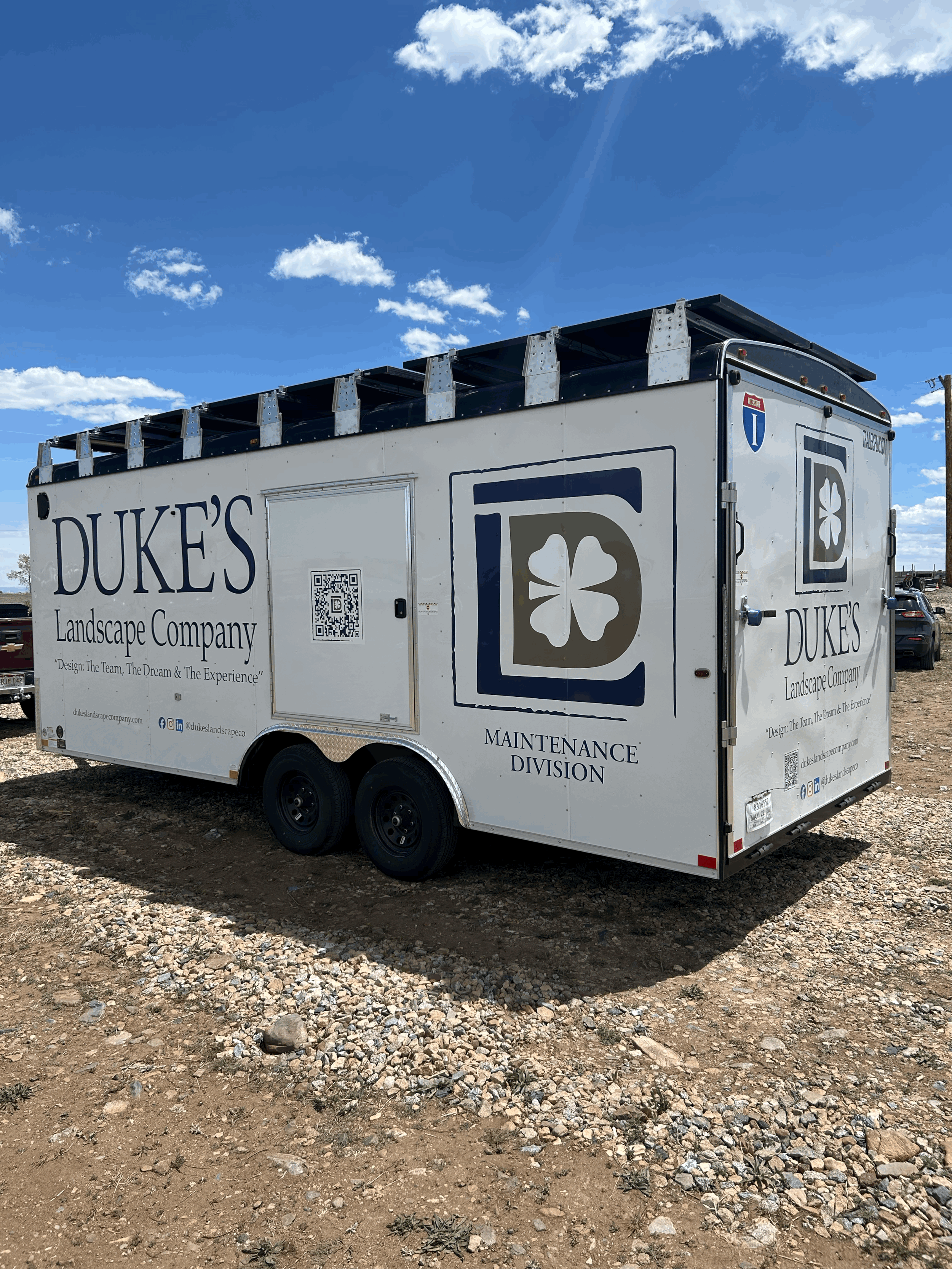

9-Rail Vroom Rack™ for CURVED ROOF Cargo Trailers (94" Rails)

Model #SLVCVDRF9R-TRLR - Need a longer solar panel rack for your 20’ curved-roof cargo trailer? A heavy-duty, adjustable option that not only mounts up to (6) 450w panels, but is also strong enough for highway speeds? Here’s a 9-Rail, adjustable cargo trailer rack designed, USA-built, and tested specifically for curved roof-top solar panel mounting... with no roof-penetration required. JULY 2026 NOTE: the 2-piece mounting foot shown in the photos has been replaced with a single extended triangle mounting foot.

Designed for Solar Panel Mounting – Built for commercial-grade solar modules and adaptable to panels up to 45” wide., our Vroom Power racks work with almost any commercial-grade solar panels. Our patent-pending rack design has even been fully wind-tested with Crossroads Solar heavy-duty solar modules for high-speed mobile applications and is stronger than other rack options because of its 3-rail design.

Adjustable Height and Width – Rack adjusts to attach to the support infrastructure on the sides of the trailer, so no holes in your trailer roof. Fits trailer widths from 84” to 102”; (3) mounting height options available, so solar modules can be mounted 2-5” above the trailer roof to mitigate heat build-up and facilitate maximum solar energy capture from bi-facial solar panels.

Easier, Faster Installation – Our adaptable, adjustable racking solution is designed to install easily into the side support frames of most existing cargo trailer types in under two hours; no roof penetration required.

UL 2703 Grounding Certification – Rack is UL 2703 compliant pending full UL certification; grounding & bonding requirements are included in this certification.

Testing - The Vroom Rack™ for Cargo Trailers has been field-tested and approved for durability under normal operating conditions consistent with proper installation as described in the Owner’s Manual.

All Vroom Power Racks™ include a 24-month parts and product warranty.

What’s in the box?

9-Rail Vroom Rack™ for CURVED ROOF Cargo Trailers (94" Rails)

Model #SLVCVDRF9R-TRLR | SKU - 000138

A 9-Rail solar panel rack for your curved-roof cargo trailer.  A heavy-duty, adjustable option that not only looks good, but is also strong enough for highway speeds.  Here’s an adjustable cargo trailer rack designed, USA-built, and tested specifically for curved roof-top solar panel mounting... with no roof-penetration required.

Box 1 of 2 - Rails | 50 lbs. | Box Dimensions: 6” x 4” x 96”

·       Vroom Power Rack™ for Trailers with (2) 3-rail racks (6 total rails, 94” each) built for commercial-grade solar modules and featuring up to 90” of available solar panel space on the rails.  Adaptable to panels up to 45” wide, and 30-40mm thickness. Fits trailer widths from 84” to 102” (mounts up to (6) total solar modules on (9) rails depending on panel width).

·       Vroom Rack™ rail parts are made of 3003 or equivalent aluminum; not powder-coated.

·       Solar Panels and Connecting Cables are NOT INCLUDED.

·       SKU | 000139

Box 2 of 2 - Hardware | 20 lbs. | Box Dimensions: 12” x 12” x 6”

·       Complete rack mounting hardware, enough to mount up to (4) total solar modules ((4) sealed hardware bags)

·       (18) mid-clamps and (12) end-clamp height-adjustment legs (Advanced Clamp Leg)

·       (12) Extended Mounting Triangles | (12) Channel Brackets

·       (12) ¼” spacers

·       5/16” Carriage bolts, Star Washers, and NyLock Nuts – Qty. (36) each, (3) bags

·       (24) 20mm SHORT T-Bolts w/rectangular head and Serrated Flange nut, (3) bags of (8) each

·       (40) ¼” x 1 ½” hex-head self-tapping screws, (4) bags of (10) | Butyl Sealing Tape

·       Hardware package includes card w/QR Code for Owner’s Manual/Installation video

·       Vroom Rack™ mounting parts are made of powder-coated 3003 or equivalent aluminum; not powder-coated.

·       SKU | 000140
